The 7000kg low profile trailer is manufactured to conform with the following standards. Australian Work Place Health and Safety
International Air Transport Association
Australian and New Zealand steel structure code
Australian National Standard for Plant NOHSC: 1010
| Overall length including tow bar | 4585mm |
| Length of deck | 3440mm |
| Width | 2660mm |
| Width between end side guides | 3210mm |
| Height to top roller | 510 mm |
| Towing speed | 20 km/hr |
| Turning radius 4 trailers in line | 10m |
| Total Weight | 1200kg |
| Finish | Galvanizing |
Painted safety yellow

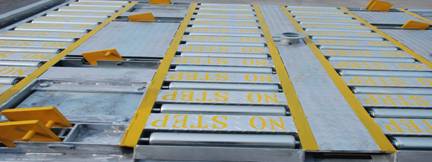

Walk ways, tow bar, tow hitch, container stops, centre container stop, NO STEP between each roller.
Painted red
Hand brake handle

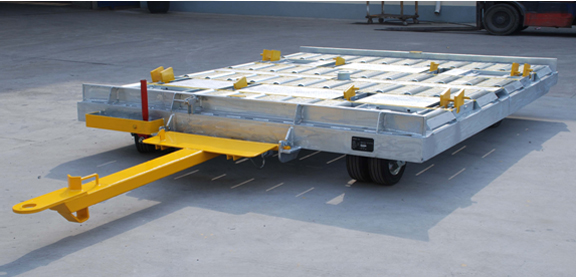

The Hydeng GSE 7000 kg Low Profile Trailer is designed to accommodate the loading/unloading of the following containers:
| AQD, AMD | M1 |
AQA, AQ6, AMA |
M1 |
P6P, PMC |
M1 |
PIP, PA6, PAP, PAJ |
M1 |
AA2, AAP |
LD-9 |
PIP, PAG, PAP, PAJ |
LD-7 |
AAU |
LD-29 |
DLF, DQF |
LD-8 |
AVA, AVE, AKE |
LD-3 |
AVC, AVJ, AKG |
LD-1 |
The width between the guide rails of the deck is 3220 mm which will accommodate the transporting of the above containers in either the end forward or side forward position.
The 7000 kg Low Profile Trailer has been purpose designed and built by Hydeng GSE for the transporting, loading and unloading of the above containers to and from loaders, transporters, racks and warehouses in the Airport Ramp Area.
The deck consists of three or four rows of heavy-duty galvanized steel rollers with manual ‘flip-up’ stops placed at the required positions to restrain the various containers used.
The casters are manufactured to the highest quality and have proven reliability. The frame and swivel plates are profiled from 20mm steel plate giving the casters great impact strenght. The axles, hubs and bearings are machined to high tolerances. The design has proven to be very successful with customers in Australia, New Zealand and the Pacific Islands enjoying lower repair cost as these casters are built to last. Each caster has a load capacity of 2'300kg giving the Hydeng GSE Low Profile Trailer a total caster load capacity of 9'200kg. Further details and specification can be given at your request.
The heavy-duty draw bar (with a 1645 mm towing eye centre) incorporates TWO ‘over-centre’ springs, attached via linkages, to prevent it from crashing to the ground when released.
A locking restraint is provided to positively lock the draw bar in a vertical position when the trailer is not in use.
A parking brake hand lever is situated on the right hand side of the draw bar assembly which, through linkages, applies the braking force to the rear fixed castors.
| Description | Part No |
|---|---|
| Handle | LPTTH handle |
| Pin | LPTTH pin |
| Spring | LPTTH spring |
| Spring collar | LPTTH spring collar |
| Roll pin | LPTTH roll pin |
| Complete weld on unit | LPTTH Complete unit |
| Description | Part No |
|---|---|
| Tow Bar | LPTTB complete |
| Leveling | LPTTB spring |
| Tow bar retainers (inc nuts & bolts) |
LPTTB retainers |
| Vertical position latch | LPTTB vertical latch |
| Description | Part No |
|---|---|
| Roller | LPT roller 60 od |
| Drawing No | Description | Part No |
|---|---|---|
| HYD373 | Top swivel plate | Item 55 |
| HYD373 | Bottom swivel plate | Item 54 |
| HYD373 | Swivel plate pin | Item 59 |
| HYD373 | Swivel pin nut | Item 63 |
| HYD373 | Felt ring | Item 56 |
| HYD373 | Swivel pin washer | Item 79 |
| HYD373 | Axle | Item 64 |
| HYD373 | Axle bushes | |
| HYD373 | Axle castle nut M30x3.5P | |
| HYD377 | Swivel caster pin cover | Item 87 |
| HYD376 | Swivel caster pin retainer | Item 63A |
| HYD374 | Hub | Item 65 |
| HYD374 | Tyre split rims (2 per tyre) | Item 73 |
| HYDTYR | 16 x 5 x 9 tyres | HYD1659 tyre |
| HYD374 | Complete rear housing | Item 70, 72 |
| Complete front swivel caster | HYDFSC |
| Complete rear fixed caster | HYDRFC |
| Front caster bearing kit | HYDFBK |
| Rear caster bearing kit | HYDRBK |
Please note : The axles, tyres, rims, hubs are the same for the front swivel and rear fixed casters.
| Description | Part No |
|---|---|
| Container stop 177 x 150 | Item 38 |
| Container stop 208 x 150 | Item 39 |
| Description | Part No |
|---|---|
| Hand brake handle | HYD Hand brake handle |
| Centre container stop (round) | HYD CCS |
