The 20ft low profile trailer is manufactured to conform with the following standards. Australian Work Place Health and Safety
International Air Transport Association
Australian and New Zealand steel structure code
Australian National Standard for Plant NOHSC: 1010

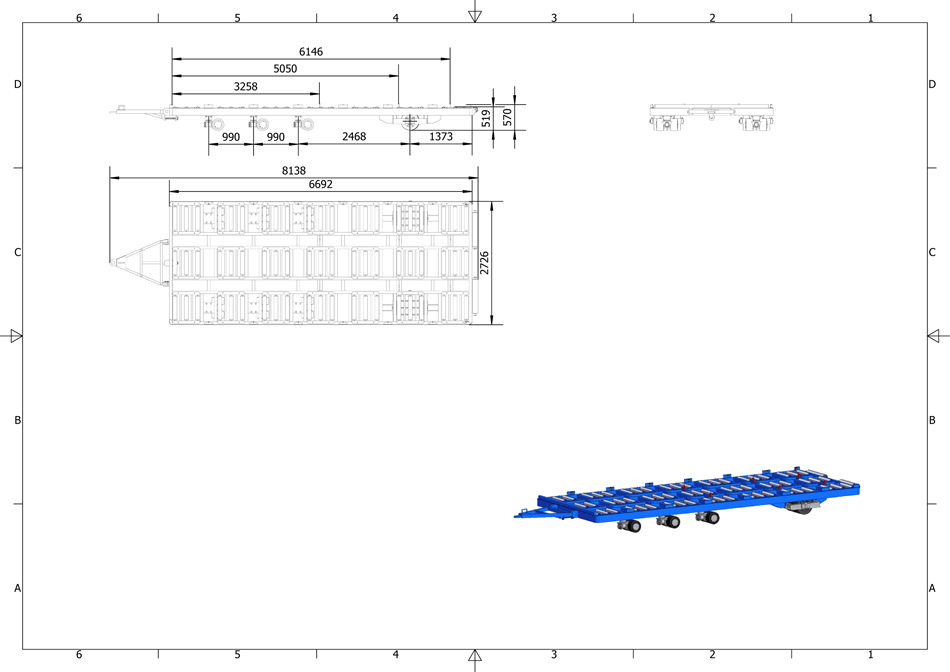

| Length overall including tow bar | 8290mm |
| Length of deck | 6636mm |
| Width | 2660mm |
| Width between end side guides | 3210mm |
| Height to top roller | 508mm |
| Towing speed | 10 km/hr |
| Total Weight | 3200kg |
| Finish | Galvanizing |
Painted safety yellow
Walk ways, tow bar, tow hitch, container stops, NO STEP between each roller.
Painted red
Hand brake handle

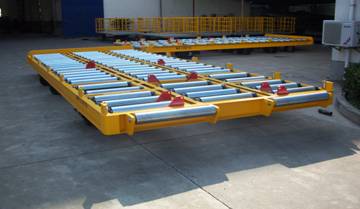

The pallet trailer is capable of transporting, any of the following:-
| ONE (1) PGA Pallet 96" x 238.5 | (2’438mm x 6’058mm) |
| ONE (1) PRA Pallet 96" x 196" | (2’438mm x 4’478mm) |
| ONE (1) P1P Pallet 88” x 125” | (2’240mm x 3’180mm) |
ONE (1) Trent engine Rollover transports HU55418 –the stop will be arranged as per information supplied by customer.
| Description | Part No | |
|---|---|---|
| 1. | Axle horizontal housing | HYD20F Item1 |
| 2. | Axle housing | HYD20F Item 2 |
| 3. | Top mounting plate | HYD20F Item 3 |
| 4. | Mounting pin | HYD20F Item 4 |
| 5-6. | Mounting housing | HYD20F Item 5-6 |
| 7. | Tyre rim | HYD20F Item 7 |
| 8. | Hub | HYD20F Item 8 |
| 9-10. | Rim covers | HYD20F Item 9-10 |
| 11-12. | Horizontal housing plates | HYD20F Item 11-12 |
| 13-15. | Mounting bolts | HYD20F Item 13-14-15 |
| 16-17. | Rim mount cover bolts | HYD20F Item 16-17 |
| 18-19. | Solid rubber, Front: 266x166mm | HYD20F Item 18-19 |
| 20. | Complete bearing kit | HYD20F Item 20 |

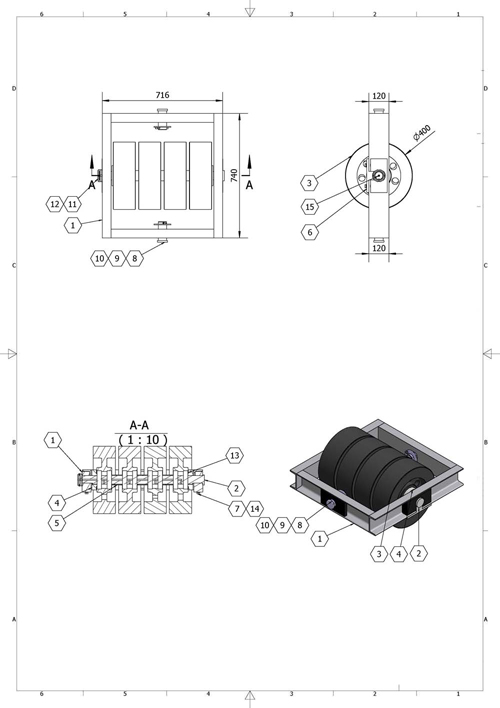

| Description | Part No | |
|---|---|---|
| 1. | Mounting frame | HYD20R Item 1 |
| 2. | Axle | HYD20R Item 2 |
| 3. | Solid rubber, Rear: 400x133mm | HYD20R Item 3 |
| 4. | Bearing kit | HYD20R Item 4 |
| 5. | Tyre rim | HYD20R Item 5 |
| 6. | Tyre rim bolts | HYD20R Item 6 |
| 7. | Grease nipple | HYD20R Item 7 |
| 8-10. | Mounting frame pins | HYD20R Item 8-9-10 |
| 11-12. | Axle nut | HYD20R Item 11-12 |
| 13. | Hubs | HYD20R Item 13 |
| 14. | Grease nipple | HYD20R Item 14 |
| 15. | Axle grease nipple | HYD20R Item 15 |
| Description | Part No |
|---|---|
| Roller: 89mmx5mm | HYD20 rollers |
| Roller: bed side rollers | HYD20 Bed side rollers |
| Bed side roller housing | HYD20 Bed side roller housing |
| Container stops | HYD20 Container stops |
| Draw bar | HYD20 Draw bar |
